AcuitSign M5 Ambulance Multipara Plastic Patient With BRI Co ICG 8temp 8IBP EtCO2 AG Vital Sign Monitor Modules

2.0 Pieces
MOQ
AcuitSign M5 Ambulance Multipara Plastic Patient With BRI Co ICG 8temp 8IBP EtCO2 AG Vital Sign Monitor Modules
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: AcuitSign M5
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Product name: M5 multi-parameter modular patient monitor
High-end Parameters: BIS, CO, ICG, 8-Temp, 8-IBP, EtCO2, AG, etc
Display: 12"Color Anti-dazzling TFT-LCD
Resolution: 800*600 pixels
Weight: less than 11kg
Power Voltage: AC 100-240V 50/60Hz
Power Input: less than 150VA
Input Current: 1.7~0.8V
Safety class: Class II
Accuracy: HR±2bpm
Βασικές πληροφορίες
Πιστοποίηση: ce
Model Number: AcuitSign M5
Πληρωμής & Αποστολής Όροι
Packaging Details: 1X AcuitSign M5 (12.1"TFT) Module Patient Monitor 4XStandard module slot, 1X Additional module rack slot (for EMS/MMS all-in-one module), 1X RJ45 internet socket, 1 XDefibrillation Output, 1X Nurse Call socket, 1X VGA port, 4X USB1.1 port, 1X Auxil
Περιγραφή προϊόντων
Product Description

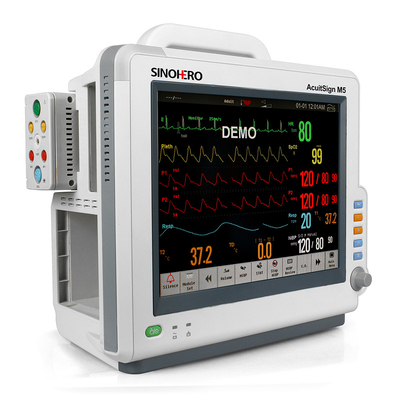

AcuitSign M5 Ambulance Multipara Patient with BIS CO ICG 8temp 8IBP EtCO2 AG Modules Vital Sign Monitor
● Introduction: AcuitSign M5 is a High Acuity 12.1" Multi-Parameter Modular Patient Monitor, which can offer multiple parameter modules to choose from, adapting to the flexible parameter combination requirements in high acuity applications. With its plug-and-play modules, our modular patient monitor is able to monitor a wide range of parameters simultaneously, such as ECG, RESP, SpO2, NIBP, 2 TEMP, IBP, EtCO2, BIS, EEG, CO, ICG, AG etc adapting from critical cares to anesthesia monitoring. It also integrates parameter measuring module call EMS with full touch display and recorder in one device to form a compact and portable device. At the same time, with its built-in replaceable battery delivering anuninterrupted monitoring during patient transfer.

● Application:
It suitable for bedside, operation room, ICU, CCU etc.

● Feature: AcuitSign M5 (12.1"TFT) Module Patient Monitor 12.1" High resolution LCD display with Full-touch screen option Unique multi-parameter module ensure seamless information workflow Advanced modular design with power networking High-End parameters including: BIS, CO, EtCO2, AG/Multi-gas, ICG, IBP, etc. Powerful data review with 168 hours of graphic & numeric data review Up to 12 channels of waveforms with various screen layout Ultra quite design suitable for night-time operation Main Unit Mainunit Display: 12.1" TFT-LCD Display for M5 Touch Screen: Full-touch screen option for M5 Other Option Modules BIS Module, CO Module, AG/Multi-gas Module, ICG Module, IBP Module, TEMP Module, Mainstream EtCO2 Module, Sidestream EtCO2 Module, Microstream EtCO2 Module, Nellcor SpO2 Module, Masimo SpO2 Module Technical Specifications of AcuitSign M5

● Standard Configuration： Mainunit:12.1″TFT-LCD display,4 Standard module slot,1Additional module rack Slot(for EMS all-in-one module), 1 RJ45 internet socket,1 Defibrillation Outpit,1 Nurse Call socket,1VGA port,4 USB1.1 port,1 Auxiliary Module Rack connector ● Option of AcuitSign M5:
EMS module: 8 Kinds of option Option Module: Sidesteam CO2 module, Microstream CO2 module, Mainstream CO2 module, AG module, ICG module, IBP module, Temp module, , Nellcor SpO2 module, Masimo SpO2 module, BIS module, CO module SD Memory Module Rack: Auxiliary Module Rack Navigating: USB compatible mouse and keyboard. Printing: 3 Channel Thermal Recorder Mounting: Rolling stand, Wall mount Battery: 11.1V/4.0AH Rechargeable Lithium Battery (max 2 pcs), Other options: External Display, Wireless Lan, Extensive Memory card, Analog Output (ECG or IBP), Full Touch Screen
Performance
Display: -12.1" Anti-dazzling Color TFT-LCD -Resolution: 800×600 pixels Battery (Option): -Type: Rechargeable Lithium battery,11.1V/4.0AH -Operating time under the normal use and full charge:≧150minutes -(2 batteries for 300 minutes) Recorder (Option): -Method: Thermal dot array -Paper width:50mm(1.97 in) -Paper length:15m -Paper Speed:12.5/25/50(mm/sec) -Traces: Maximum 3 tracks -Recording way: Real-time recording, Periodic recording, Alarm recording Alarm: -Level: Low, medium and high -Indication: Auditory and visual -Patient Physiological Alarm Light color: Yellow & Red: -Equipment Technical Alarm Light color: Blue -Supports Pitch Tone and multi-level volume; -Supports custom arrhythmia tone Input device: -Touch screen (Option). -knob: standard config -Mouse input: Support -Keyboard input: Support System Output & Extensible Interfaces: -Ethernet Network:1 Standard RJ45 socket -Defibrillation Output:1 RJ11 socket -Nurse Call:1 BNC socket -Video Output:1VGA port -USB1.1 port:4 -Auxiliary Module Rack connector.1 -SD memory card:2G (option) -Analog Output(ECG or IBP):Option Trend & Reviewing: -Trend:168 hours -NIBP measurement reviewing:1000 groups -ARR event:128 groups of ARR event and the associated waveform -Alarm events:128 groups of parameter alarm events and associated parameter -Waveform at the alarm moment Holographic waveform: The storage time depends on the stored waveforms and the quantity of them. Environment: -Operating temperature:0~+40℃ -Storage temperature:-20℃ to +50℃ -Operating humisity:15%to85%(non condensing) -Storage humidity :10% to 93%(non condensing) -Operating atmospheric pressure:860hPa to 1060hPa -Storage atmospheric pressure:500hPa to 1060hPa Safety: -IEC60601-1 Approved, CE marking according to MDD93/42/EEC ECG: -Lead Mode:3-leads ECG input 5-leads ECG input 12-leads ECG input -Lead selection:Ⅰ,Ⅱ,Ⅲ Ⅰ,Ⅱ,Ⅲ,aVR,aVL,aVF,V- Ⅰ,Ⅱ,Ⅲ, aVR,aVL,aVF,V1～V6(option) -Gain: 2.5mm/mV(×0.25), 5mm/mV(×0.5), 10mm/mV(×1), 20mm/mV(×2), 40mm/mV(×4),Auto -RR: Monitor mode≧105dB Surgery mode≦105dB Diagnostic mode≧90dB -Frequency response(-3d B): Monitor mode 0.5～40Hz Surgery mode 1～25Hz Diagnostic mode 0.05~150Hz -input impedance: ≧5.0Mohm -ECG signal range:±10.0mV -Electrode offset potential: ±500mV -Patient Leakage Current:<10uA -Standardizing signal:1mV±5% -Baseline recovery:<5s after Defibrillation.(Mon or Surg mode) -Indication of electrode separation: Every electrode(exclusive of RL) -Protection: Breakdown Voltage 4000AVC 50/60Hz;defibrillator proof -Sweep speed:12.5mm/s,25mm/s,50mm/s HR: -Range: Adult 10～300bpm Pediatric & Neonate:10～350bpm -Refreshing time:≦50 bpm per 2 pulses 50～120bpm per 4 pulses ≧120bpm per 6 pulses -Resolution: 1bpm -Accuracy:±1% or ±1bpm,whichever is greater ST segment: -Measurement range:-2.0mV～2.0mV -Accuracy:-0.8mV~0.8mV: ±0.02mV or ±10% whichever is greater Over ±0.8mV:unspecified -Resolution:0.01mV RESP : -Method: Thoracic impedance -Lead Selected from:Ⅰ(RA-LA)orⅡ(RA-LL);Default:Ⅰ -Gain:×0.25, ×1, ×2, ×4 -Bandwidth:0.25Hz to 2.0Hz (-3dB) -Sweep Speed: 6.25mm/s,12.5mm/s,25mm/s -Measurement Range:0～150 rpm -Resolution: 1rpm -Accuracy: ±2rpm or 2% whichever is greater -Delay of Apnea Alarm:10s,15s,25s,30s,35s,40s,45s,50s,55s,60s NIBP : -Way of measurement: Automatic oscillometry -Range of measurement: Adult: SYS 30～270mmHg DIA 10～220mmHg MAP 20～235mmHg Child: SYS 30～235mmHg DIA 10～220mmHg MAP 20～225mmHg Neonate: SYS 30～135mmHg DIA 10～100mmHg MAP 20～125mmHg -Cuff pressure range:0～300mmHg -Resolution:1mmHg -Pressure Accuracy: Static:±2% or ±3mmHg,whichecer is greater Clinical: ±5mmHg average error Standard deviation:≦8mmHg -Unit: mmHg, kPa -Measurement mode: Manual, Auto, STAT -Intervals for AUTO measurement time:1,2,3,4,5,10,15,30,60,90 minutes; 2,4,8,12hours -STAT mode cycle time: keep 5 minutes, at 5 seconds interval. -Overpressure Protection: Hardware and software double protections -Pulse rate range:40～240bpm Standard SpO2（Digital）: -Measurement Range:0～100% -Resolution:1% -Accuracy: At70～100%,±2% At0～69%,unspecified PR: -Measurement Range:25～255bpm -Resolution:1bpm -Accuracy: ±1% or ±1b
Recommend Products

NEC8

Finger Pulse Oximeter
· Integrated with SpO2 probe and processing display module · Small in volume, light in weight and convenient in carrying · Operation of the product is simple, low power consumption · SpO2 value display · Pulse rate value display, bar graph display · Pulse waveform display · The display mode can be changed

SE1208

12-Channel ECG Machine * Splendid 10” color TFT with Alpha-numeric keyboard *Simultaneous 12 leads of ECG printing(Roll or Z-fold) *Multiple USB port for connecting PC-ECG software and external printer * Excellent ECG auto-interpretation program and Pacemaker detection * Reliable and fas Network Connectivity and data transmission

JRT200

Thermometer
* LCD display
* Adopts the latest infrared technology
* Non-contact design
* High temp alarm
* Double mode, can be used to measure the temperature of human body and object surface.
* Just 1 second can measure out the body temperature,Fast & accurate reading within 1 second.
Packing & Delivery
Physical Identity: Environment Operating temperature: 0~+40℃ Storage temperature:-20℃ to +50℃ Operating humisity:15%to85%(non condensing) Storage humidity: 10% to 93%(non condensing) Operating atmospheric pressure:860hPa to 1060hPa Storage atmospheric pressure: 500hPa to 1060hPa Product Size: 35*34*20.7cm Package Size: 51*40*52cm Product Weight: 10kgs Package Size: 12KG Standard module slot: 4 Additional module rack Slot: 1 Certification： IEC60601-1 Approved, CE marking according to MDD93/42/EEC Package included: 1X AcuitSign M5 (12.1"TFT) Module Patient Monitor 4X Standard module slot, 1X Additional module rack slot (for EMS/MMS all-in-one module), 1X RJ45 internet socket, 1X Defibrillation Output, 1X Nurse Call socket, 1X VGA port, 4X USB1.1 port, 1X Auxiliary Module Rack connector
