CE First Aid Medical Multiparameter mTouch 9 Machines Hospital Devices Patient Monitor

2.0 Pieces
MOQ
CE First Aid Medical Multiparameter mTouch 9 Machines Hospital Devices Patient Monitor
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: mTouch 9
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Product name: Patient Monitor
Πιστοποίηση: CE ISO
Accuracy: 99.5%
Function: First-Aid Devices, Examination Therapy Equipments
Memory: Memory Stores Minimum190000 Results
Language version: 18 Languges Optional
Display: 15" Color TFT-LED
ECG: 3 Leads /5 Leads/12 Leads
Standard parameters: ECG,SPO2,NIBP,PR,RESP,TEMP,ETCO2
Safety: IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Βασικές πληροφορίες
Πιστοποίηση: ce, CE ISO
Model Number: mTouch 9
Πληρωμής & Αποστολής Όροι
Packaging Details: 1 mTouch 9 15" Full Touch Screen Patient Monitor 1 Adult Reusable Finger clip SpO2 Sensor 1 ECG 5-Lead Cable, Snap end 1 Adult Reusable NIBP Cuff 1 Adult Reusable NIBP Tube 1 Built-in Battery (Lithium battery) 10 ECG disposable electrodes 1 Temperature P
Περιγραφή προϊόντων
Product Description

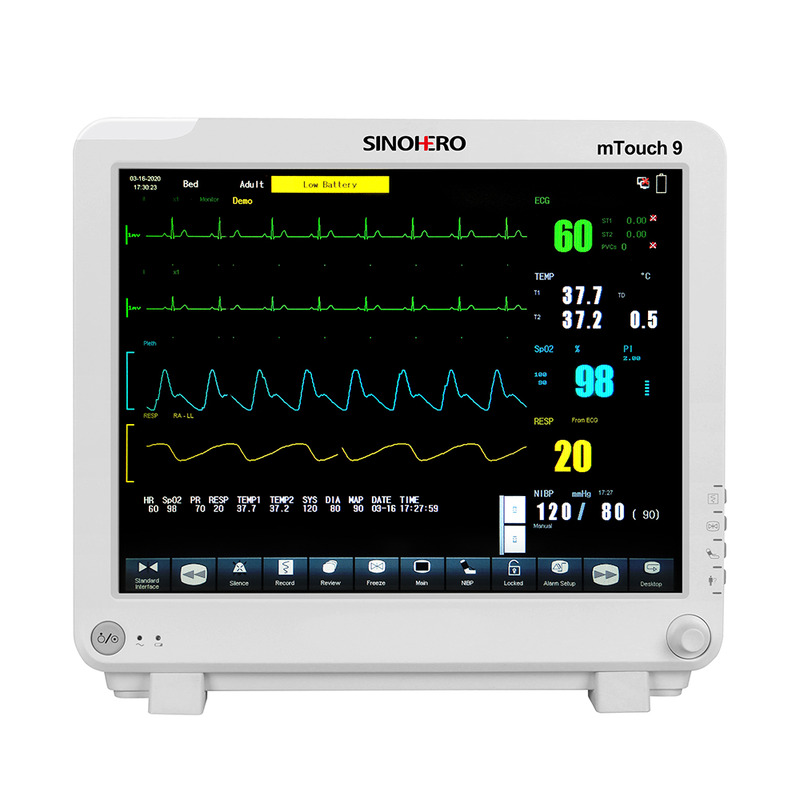

Medical Hospital Machines mTouch 9 Ce multi-parameter Patient Monitor
● Introduction: mTouch 9 is a High Acuity 15" Multi-Parameter Full Touch Screen Patient Monitor, Portable Patient Monitor Basic 6 parameters (ECG, RESP, NIBP, TEMP, RESP) to reach General clinical needs,15"TFT Full-touch screen with ultra view, easy to view Arrhythmia and ST analysis to provide rapid cardiac diagnosis Up to 72-hour trend to review previous patient data External 4-channel wide-size printer, stand by any time Bulk-capacity SD card and USB flash disk to ensure unlimited data storage. Application: It suitable for bedside, General Ward ,operation room, ICU, CCU etc. Features: mTouch 9 ICU/CCU Patient Monitor 15"TFT Full-touch screen with ultra view External 4-channel wide-size printer, stand by any time Bulk-capacity SD card and USB flash disk to ensure unlimited data storage High-End parameters for option: 12-lead ECG, Masimo SpO2, EtCO2, 4-IBP, Suntech NIBP, etc. Standard Configuration: Full-touch screen, 3/5 lead ECG, PR/HR, RESP, SpO2, NIBP, TEMP, Li-ion Battery Optional Configuration: AG/Multi-gas, Masimo SpO2, 2-IBP, 4-IBP, EtCO2(Sidestream,Mainstream), Suntech NIBP, Thermal recorder Technical Specifications of mTouch 9 Display -15” color TFT Full Touch Screen -Resolution: 1024×768
Performance
● Performance:
Multi displays -Standard display -Large-font display -Short Trend display -OxyCRG display Indicator -Power indicator light -Battery indicator light Interface -Parameter cable interface -AC Power input socket -Ground wire interface -Network interface -Alternate Display -USB interface Battery -Li-ion battery /Rechargeable -5 hours for charging; 4 hours for continuous working Trend Graph -Reviewable Parameters: HR,ST,SpO2,PR,NIBP,RR,TEMP -Resolution: 1s, 5s, 5min, 10min Trend Table Reviewable Parameters: HR,ST,SpO2,PR,NIBP,RR,T1,T2,TD Resolution: 1, 5, 10, 30,60min Trend Data: 256 Hours trend data for all parameters NIBP measurement: 400 Groups Alarm -Categories: Physical alarms and Technical alarms -Priority: High, Medium and Low -Alarm sound levels: 0,1,2,3,4 -Notification: Visual and Audible Networking -Connected to central monitoring system Recorder -Type: Thermal dot array -Number of waveform channels: 3 (standard), 4(optional) -Paper width: 112mm -Paper length: 20m -Print speed: 25mm/s other speeds can be defined (optional) Operation Environment -Temperature: 0℃-40℃ -Relative humidity: ≤85% (noncondensing) -Atmospheric pressure: 860hpa-1060hpa -Patient Range: Adult, Pediatric, Neonate ECG -Lead Mode: 3-lead 5-lead -Lead selection: I,II, III I,II,III,V,AVR,AVL,AVF -Gain: ×0.25,×0.5,×1,×2,Auto -Sweep speed: 12.5mm/s, 25mm/s, 50mm/s -Multi-lead display: 6 waveforms -Alarms: User-selectable upper and lower heart rate limits HR -Heart Rate for Adult: 15-300bpm -Heart Rate for Neonate/Pediatric: 15-350bpm -Heart Rate Accuracy: ±1bpm or ±1%, whichever is greater -Heart Rate Resolution: 1bpm -Notch: 50Hz, 60Hz ST Segment -ST segment range: -2.0mv to 2.0mv -ST alarm range: -2.0mv to 2.0mv -ST segment accuracy: -0.8mv to 0.8mv -ST segment error: ±0.02mv -Arrhythmia type: 13 types SpO2 -Measurement range: 1%~100% -Resolution: 1% -Accuracy: ±2%(70%-100%); unspecified(0-69%) -Alarm range: 0~100% Pulse Rate -Measurement range: 20bpm～254bpm -Resolution: 1bpm -Accuracy: ±3bpm -Alarm range: 0~254bpm NIBP -Measurement technique: Oscillometric -Measurement types: Systolic, Diastolic, Mean -Work mode: Manual, Auto, STAT -Auto measurement time: 0-4 hours -Measurement unit: mmHg / Kpa selectable -Measurement range: Adult Mode: Systolic pressure 40~270mmHg Diastolic pressure 10-215mmHg Mean pressure 20-235mmHg Pediatric Mode: Systolic pressure 40~200mmHg Diastolic pressure 10-150mmHg Mean pressure 20-165mmHg Neonatal Mode: Systolic pressure 40-135mmHg Diastolic pressure 10-100mmHg Mean pressure 20-110mmHg -Accuracy: 5% -Resolution: 1mmHg -Alarms : Selectable upper and lower limits for systolic, diastolic and mean pressure -Over-pressure protection: Double safety protection IBP -Channels: 1 or 2, 4 selectable -Measurement Mode: Pressure Transducer -Measurement Range: -10mmHg～300mmHg -Accuracy: ±1mmHg or ±2%, whichever is greater(without sensor) -Pressure name: ART, PA, CVP, RAP, LAP, ICP, P1, P2 -Alarm range: -10~300mmHg TEMP -Measurement unit: ºCelsius(℃) or ºFahrenheit(F) -Measurement range: 0-50℃ -Channel: T1, T2, TD (Temperature Difference) -Resolution: 0.1℃ -Accuracy: ±0.1℃ -Probe type: YSI type RESP -Measurement technique: RA-LL Impedance variation detection -Range: Adult: 7~120rpm Pediatric/Neonate: 7~150rpm -Apnea alarm: 10s,15s,20s,25s,30s,35s,40s selectable -Sweep speed: 6.25mm/s, 12.5mm/s, 25mm/s -Gain: 0.25, 0.5, 1, 2, 4 EtCO2 Mainstream CO2 -Measurement Range: 0 -150 mm Hg -Accuracy: ± 2 mm Hg (0 – 40 mm Hg) ± 5% of reading (41 – 70 mm Hg) ± 8% of reading (71 –100 mm Hg) ± 10% of reading (101 –150 mm Hg) -RR range: 0 to 150rpm -Accuracy: 1rpm -Response time: <60ms Sidestream CO2 -Measurement range: 0 -150 mm Hg -Accuracy: ± 2 mm Hg (0 – 40 mm Hg) ± 5% of reading (41 – 70 mm Hg) ± 8% of reading (71 –100 mm Hg) ± 10% of reading (101 –150 mm Hg) -Sample flow rate: 50ml/min -Accuracy: ±15% or 15ml/min,whichever is greater -Warm-up time: <1min,enter the iso accuracy mode After 1 min,enter the full accuracy mode -RR range: 0-120rpm -RR accuracy: ±2 rpm Multi Gas -Measure method: Infrared spectrum -Fi and ET values: CO2 ,N2O ,O2 ,AG(HAL,ISO,NEF,SEV,DES) -Resolution:1% -Unit:% -Calibration: Room air calibration automatically when changing airway Adapter (<5 sec) -Warm-up time:<10S,full accuracy within 1min -Measurement and alarm range of AG - Gas Range Accuracy CO2 0-10% ±(0.3% ABS+4%REL) N2O 0-100% ±(2% ABS+8%REL) O2 10-100% ±(2% ABS+2%REL) HAL,ISO,ENF 0-5% ±(0.15% ABS+10%REL) SEV 0-8% ±(0.15% ABS+10%REL) DES 0-18% ±(0.1

Standard Configuration of mTouch 9 15” TFT-LCD Full Touch Screen, 3/5 Lead ECG, PR/HR, RESP, SpO2, NIBP, TEMP, Li-ion Battery Optional configuration of mTouch 9 Masimo SpO2, 2-IBP, EtCO2 (Sidestream, Mainstream), Printer, Multigas, C.O., 12 Lead ECG, VGA, Physical Identity Size and Weight - Product size: 36*32.4*12cm - Packing size: 46*32*43cm - Net weight: 6.5kg - Gross weight:8kg
Recommend Products

CMS50DL

Finger Pulse Oximeter
· Integrated with SpO2 probe and processing display module · Small in volume, light in weight and convenient in carrying · Operation of the product is simple, low power consumption · SpO2 value display · Pulse rate value display, bar graph display · Pulse waveform display · The display mode can be changed

SE1208

12-Channel ECG Machine * Splendid 10” color TFT with Alpha-numeric keyboard *Simultaneous 12 leads of ECG printing(Roll or Z-fold) *Multiple USB port for connecting PC-ECG software and external printer * Excellent ECG auto-interpretation program and Pacemaker detection * Reliable and fas Network Connectivity and data transmission

JRT200

Thermometer
* LCD display
* Adopts the latest infrared technology
* Non-contact design
* High temp alarm
* Double mode, can be used to measure the temperature of human body and object surface.
* Just 1 second can measure out the body temperature,Fast & accurate reading within 1 second.
Packing & Delivery
Package included: 1 mTouch 9 15" Full Touch Screen Patient Monitor 1 Adult Reusable Finger clip SpO2 Sensor 1 ECG 5-Lead Cable, Snap end 1 Adult Reusable NIBP Cuff 1 Adult Reusable NIBP Tube 1 Built-in Battery (Lithium battery) 10 ECG disposable electrodes 1 Temperature Probe Skin 1 Power Cable

Optional configuration of mTouch 9: Masimo SpO2, External Thermal Recorder, 2IBP, SideStream/MainStream EtCO2, Video Output, Wireless Central Monitoring, Defibrillation synchronization, Wall Mount, Moving Cart Full Set
